Demo X-ray Images

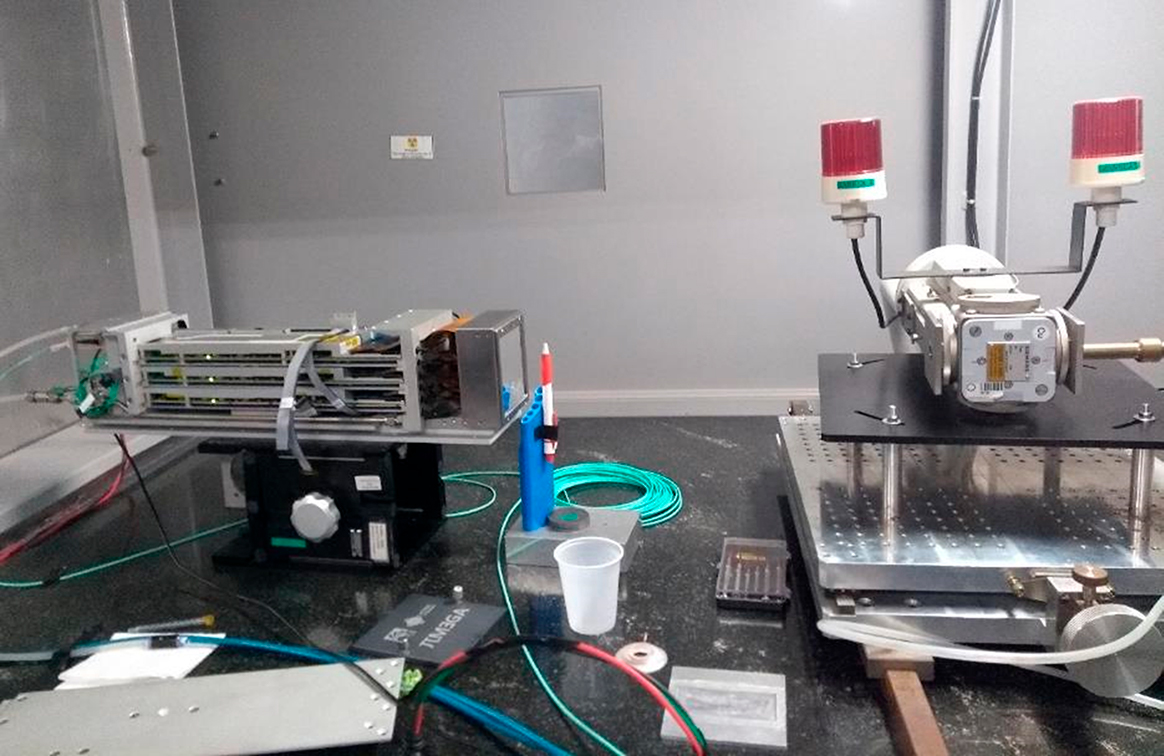

The initial Pimega x-ray detector tests were done in the LNLS X-ray generator laboratory chamber. The illustrated demo images were the first x-ray images generated by the Pimega prototype back in 2019.
The detector used at demo image experiment: PIMEGA 135D.


Demo images

A Courtesy of the LNLS-Sirius @CNPEM, Brazil

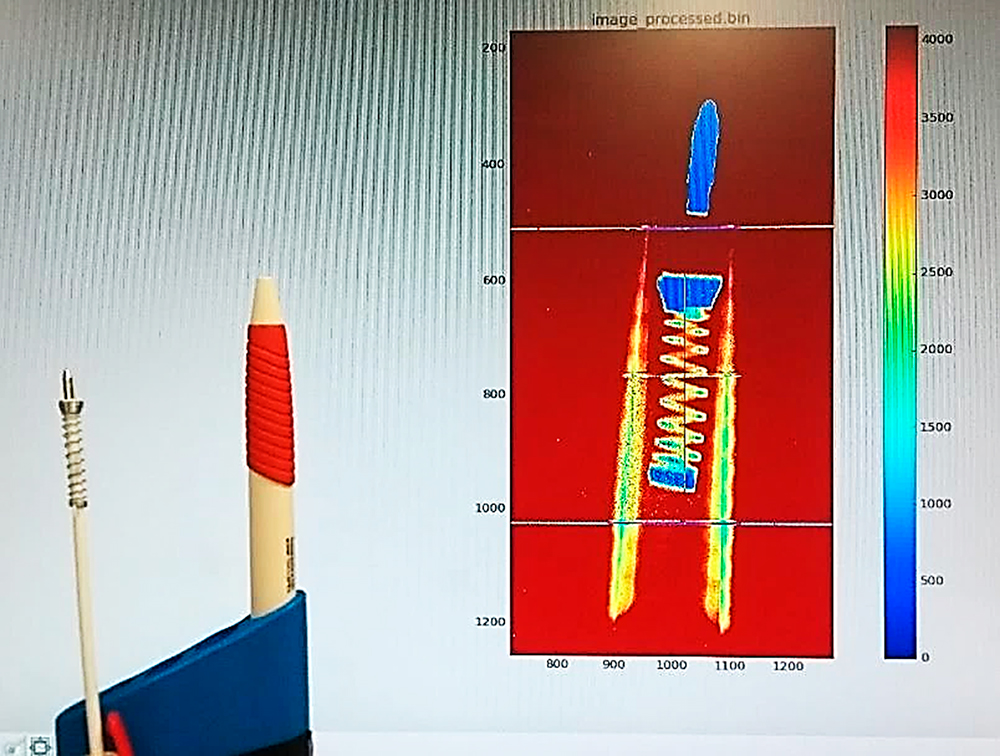

                                                                                         Pen x-ray demo image

LNLS Radiography in X-ray generator, Detector: PIMEGA 135D, Sensor: Si / 300µm.

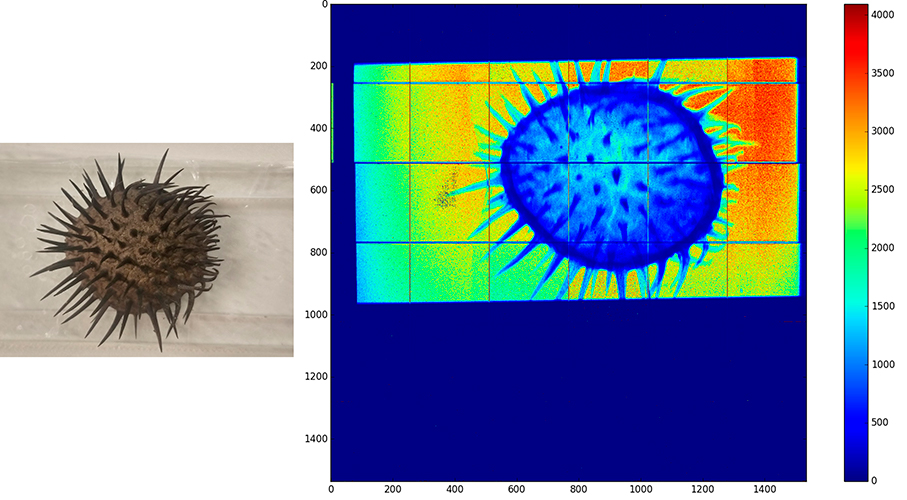

                                                                                     Castor bean x-ray demo
