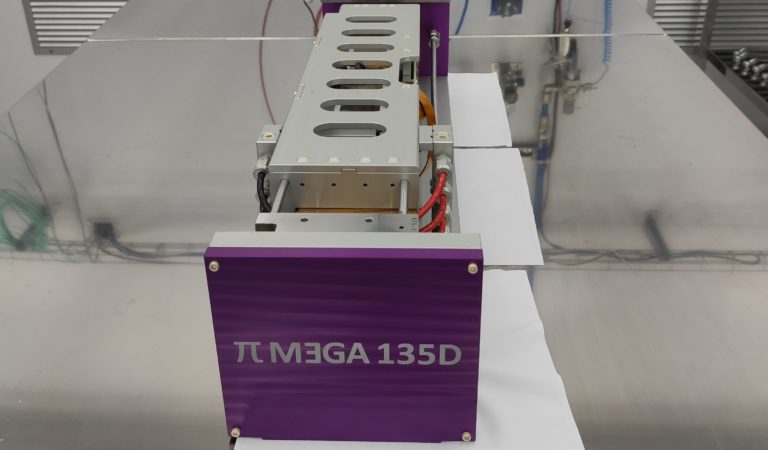

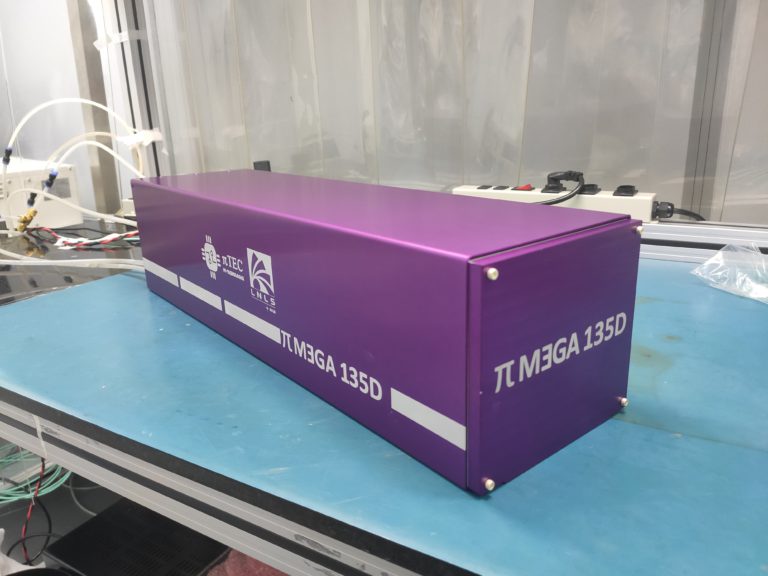

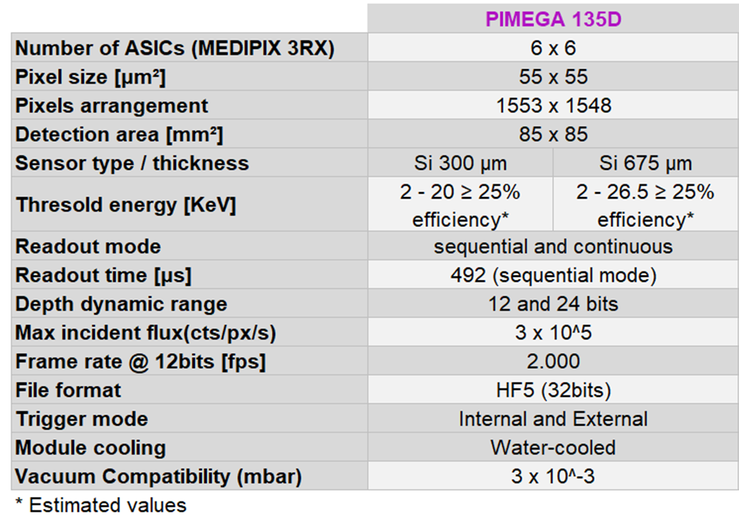

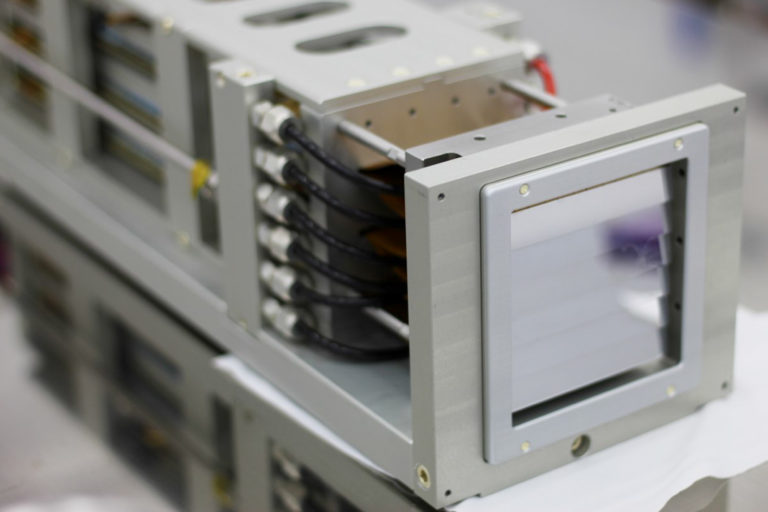

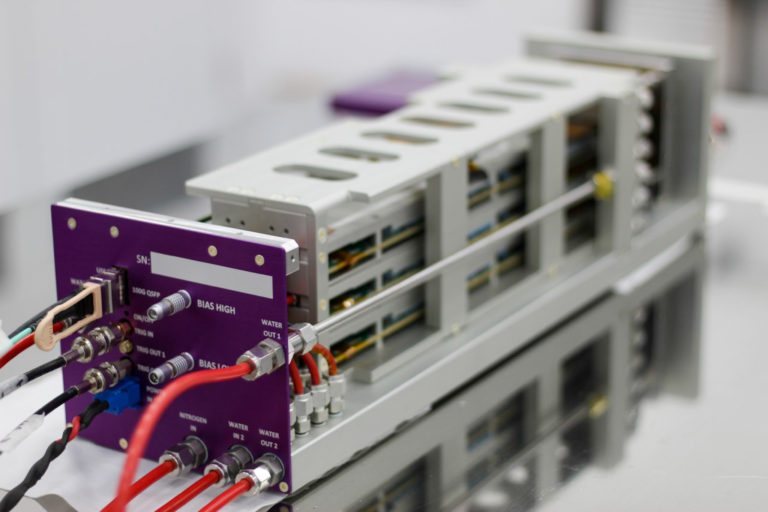

PIMEGA 135D
Compact, high-performance X-ray detector for advanced imaging applications
OVERVIEW
The RAD 800K is a compact photon-counting X-ray detector based on Medipix3RX technology, delivering high-speed, noise-free detection with flexible geometry and seamless integration into synchrotron and laboratory environments.
KEY FEATURES
Photon-counting, noise-free X-ray detection
High-speed acquisition up to 20,000 fps (1-bit mode)
Compact and modular design
Air-cooled system (no external chiller required)
Dual-energy discrimination and charge summing modes
Detector Specifications
| PARAMETER | SPECIFICATION |
|---|---|
| ASIC technology | Medipix3RX |
| Pixel size | 55 µm × 55 µm |
| Dynamic range | 1, 12, 24-bit |
| Frame rate |
20,000 fps (1-bit), 2,000 fps (12-bit), 1,000 fps (24-bit) |
| Readout |
Continuous (zero dead time in 1- and 12-bit modes) |
| Energy discrimination | Dual threshold |
| Acquisition modes | Continuous and sequential |
| Cooling | Air-cooled |
| Sensor options | Si or CdTe |
| Software |
GUI, EPICS, Python & C++ APIs |
Model-Specific Specifications
| PARAMETER | RAD 800K |
|---|---|
| Number of Medipix3RX ASICS | 1 x 6 |
| Pixel arrangement | 256 x 1.536 |
| Area [mm²] | 14 x 84 |
| Resolution [MP] | -0.4 |
| Weight [kg] | 2.2 |
| Dimension [mm] (w x h x d) | 105 X 80 X 236 |
Sensor Arrangement

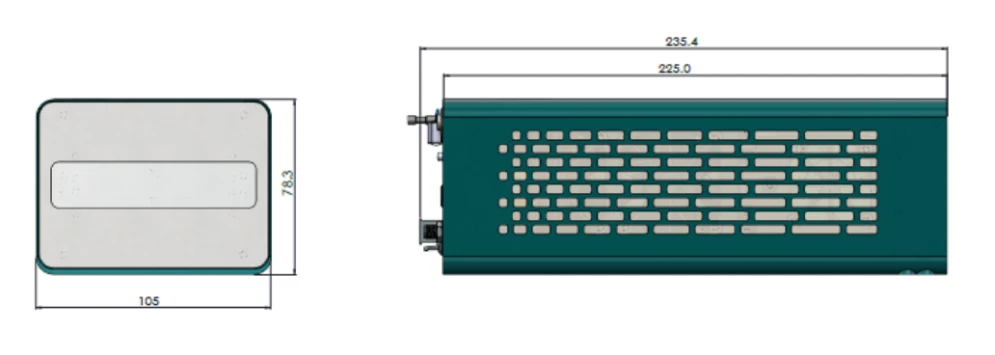

Active area

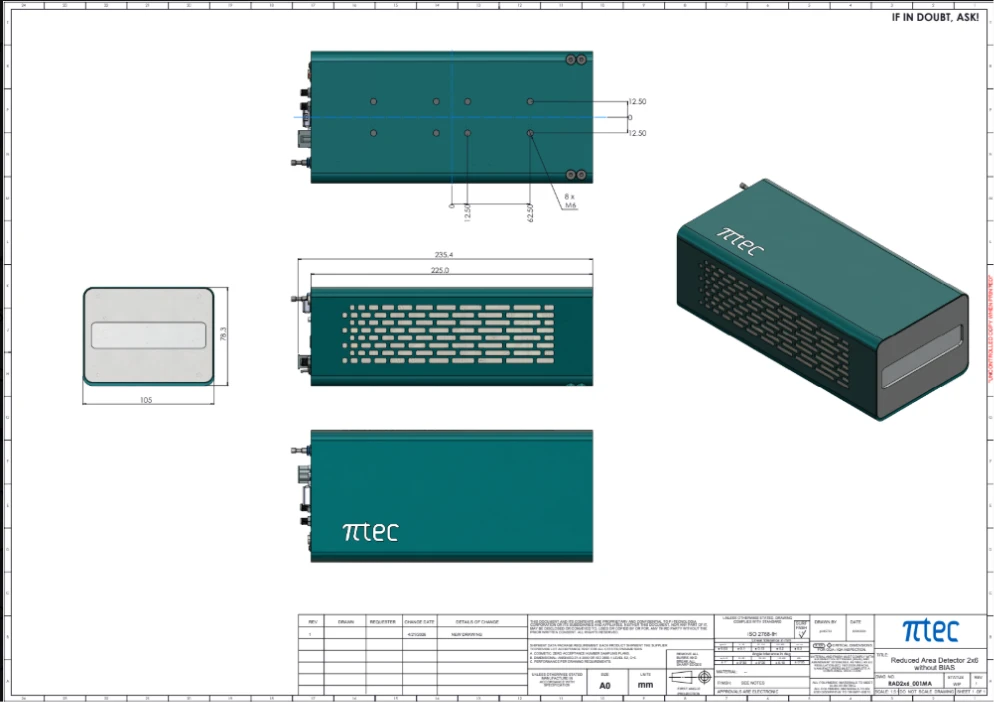

Technical Drawing
Sensor Options
| SENSOR | THICKNESS | ENERGY RANGE |
|---|---|---|
| Silicon (Si) | 500 µm 1000 µm | 1000 µm |
| CdTe | 6 - 25 keV | 8 - 150 keV |
Applications
RAD detectors support a wide range of advanced X-ray applications:
X-ray imaging
Time-resolved experiments

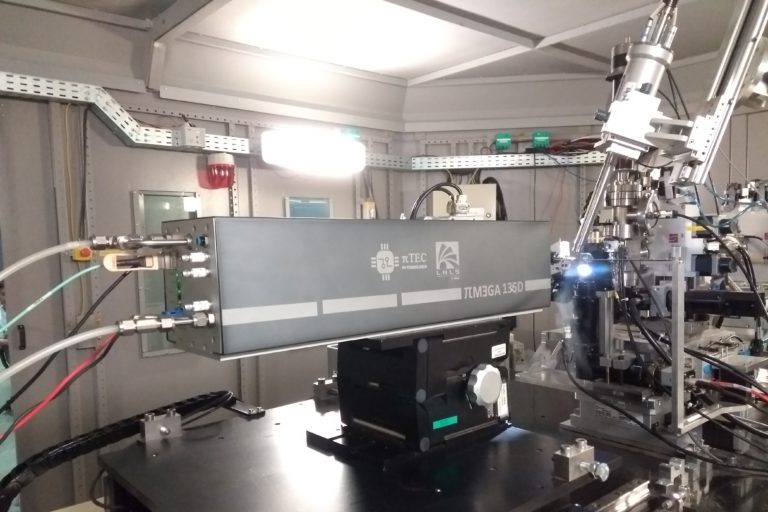

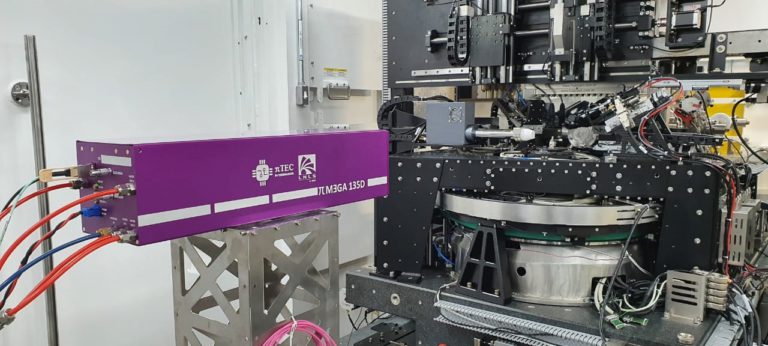

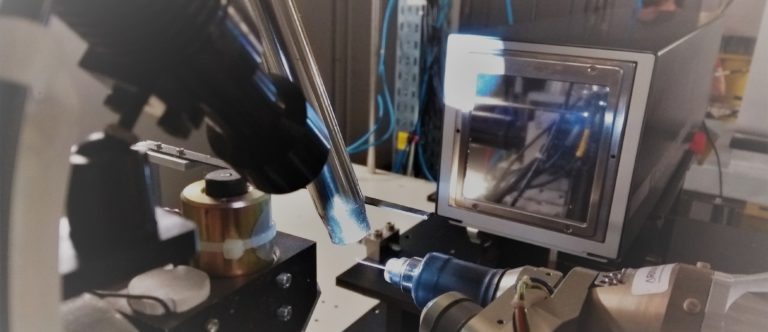

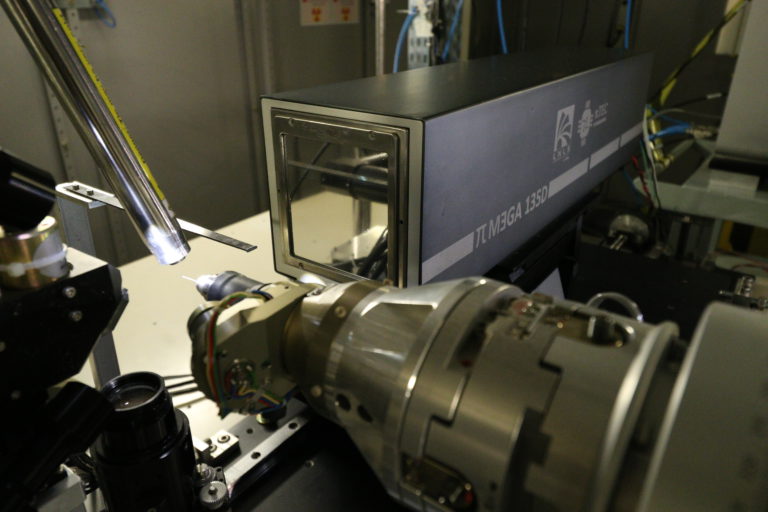

Synchrotron-based techniques
Laboratory-based X-ray systems
