Introducing

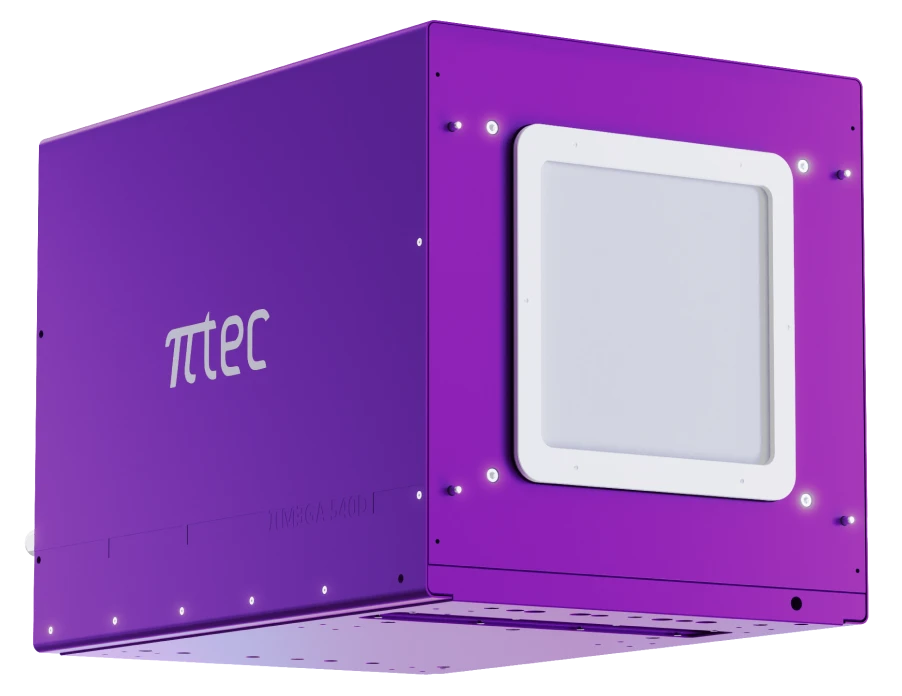

PIMEGA
Large Area X‑Ray Detector for Big Discoveries
Key Features
Medipix3RX CERN Technology — Si or CdTe Sensors
55 μm × 55 μm Pixels — 12 or 24-bit Dynamic Range
Water-Cooled System
High Modularity
TECH SPECIFICATIONS
| Tech specifications | |
|---|---|
| Frame rate | • 20,000 fps @1-bit • 2,000 fps @12-bit • 1,000 fps @24-bit |
| Acquisition modes | Sequential or continuous |
| Readout time | 0 @ 1, 12-bit mode
1 ms @ 24-bit mode |
| Acquisition modes | Dual energy, charge summing mode |
| Count rate (at 10%) |
3.5 × 10⁵ ph/s/pixel
1.2 × 10⁷ ph/s/mm² |
| Software interface | PITEC User Interface
EPICS Drivers API for Python and C++ |
Performance & Design Highlights
PIMEGA combines compactness with high performance, offering flexible integration across a wide range of experimental setups:
1. Modular architecture with multiple geometries and active areas
2. High-speed acquisition:
20,000 fps @ 1-bit
2,000 fps @ 12-bit
1,000 fps @ 24-bit
3. Optimized thermal management with air cooling
4. Adaptable to synchrotron and laboratory environments
Software
Interface
PITEC Graphical User Interface
EPICS Drivers
API for Pyhton and C++
Applications
RAD detectors support a wide range of advanced X-ray applications:
X-ray imaging
Time-resolved experiments
Synchrotron-based techniques
Laboratory-based X-ray systems
Sensor Geometries
PIMEGA offers two sensor head assembly options:
Sensor thickness options: 500, 675, or 1000 µm.
Overlapped sensors (gapless)
For medium-to-far sample-to-detector distances, minimizing dead area. PITEC's image restoration package applies a geometric correction algorithm to compensate for the overlapping sensors' distortion.
Coplanar sensors
For close-distance sample positioning.
Sensors Options
RAD detectors are available with different semiconductor sensors to match the application energy range.
| SPECS | SI | CDTE |
|---|---|---|
| Thickness | 500 µm 1000 µm | 1000 µm |
| Energy Range | 6 - 25 keV | 8 - 150 keV |
| Adjustable threshold range | 4 - 25 keV | 5 - 75 keV |
Silicon (Si): ideal for low to mid-energy X-rays
Cadmium Telluride (CdTe): optimized for higher-energy applications
Model comparison
| Product |
135D |
540D |

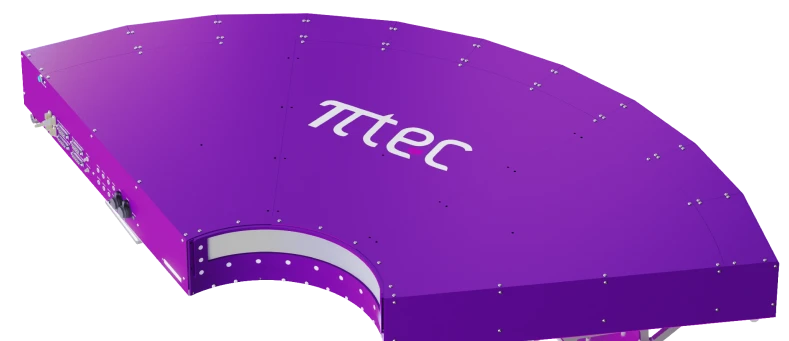

450D |
|---|---|---|---|
|
Number of Medipix3RX |
6 x 6 | 12 x 12 | 1 x 120 |
|
Pixels arrangement |
1.536 x 1.536 | 3.072 x 3.072 | 256 x 30.720 |
| Area [mm²] | 84 x 84 | 170 x 170 | 14 x 1.660 |
| Resolution [MP] | ~2.4 | ~9.4 | ~7.9 |
| Weight [kg] | 22 | 90 | 90 |
|
Dimension [mm] (w x h x d) |
180 x 152 x 594 | 394 x 414 x 594 | 1.690 x 287 x 1.002 |
|
Sensor Arrangement |
|
|
|
Download the PIMEGA technical datasheet
