PIMEGA 540D Overview

The PIMEGA 540D is the perfect choice for synchrotron detector if your research requires large-area, high-resolution and high-frame per second rate detectors.

The PIMEGA 540D operates without dead-time offering adjustable energy-discriminating threshold. All PIMEGA detectors makes use of CERN Medipix3RX ASIC, with pixel size of 55 µm which make direct detection of photons to deliver highest spatial resolution data (9,437,184 pixels) with unprecedent data frame rate (2000 fps).

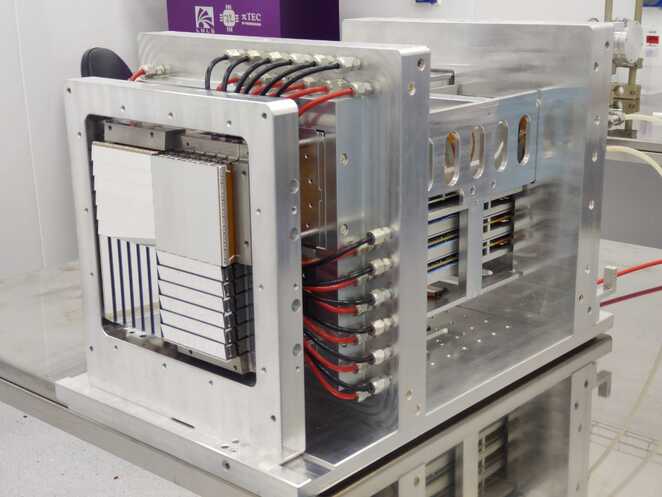

PIMEGA 540D has two options of sensor head assembly: superposed sensors for gapless configuration (medium to far distance sample positioning applications), and coplanar sensors configuration (close distance positioning applications). Additionally, Pitec has several different options of backend systems (optional) according the user applications.

PIMEGA 540D is the perfect solution to you fully explore the capabilities of your beamline with full support from Pitec expert team.

Pimega 540D Data Sheet

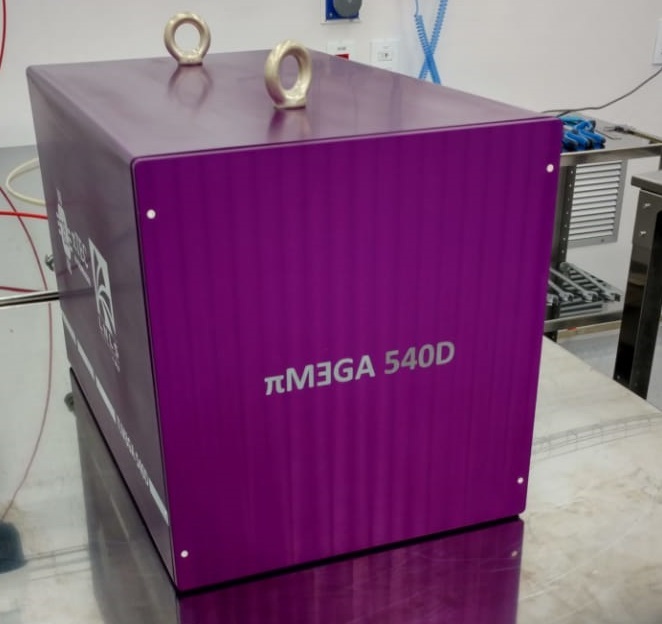

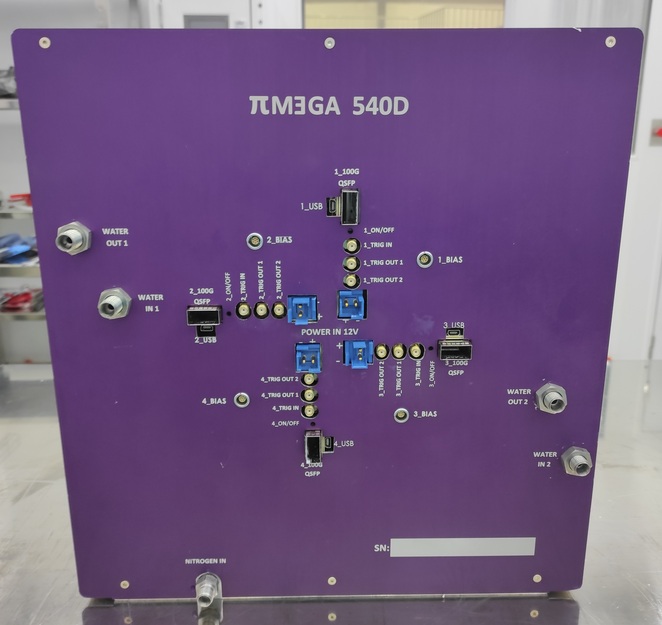

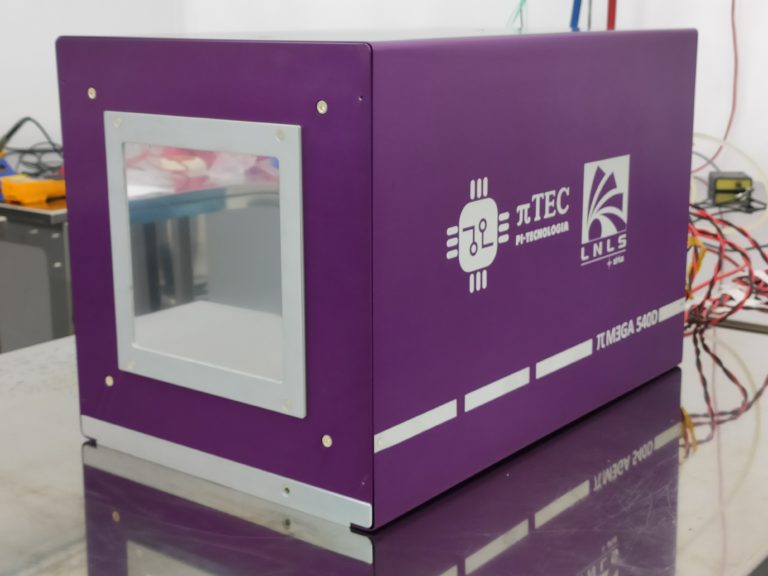

PIMEGA 540D Detector

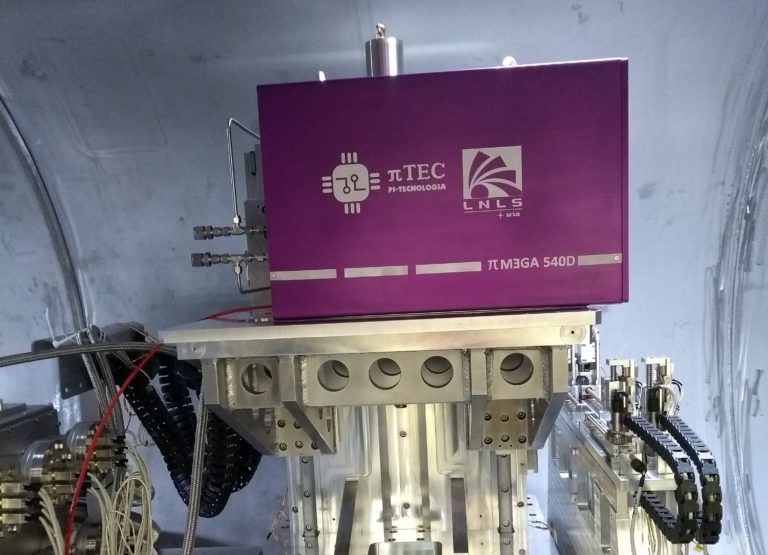

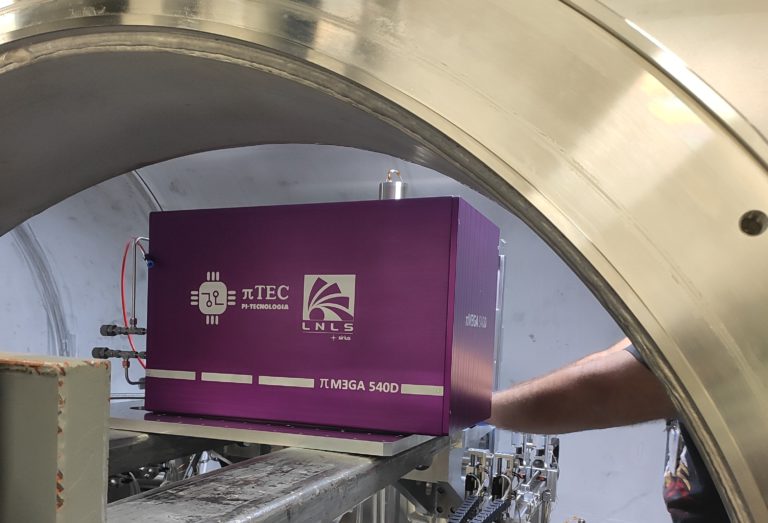

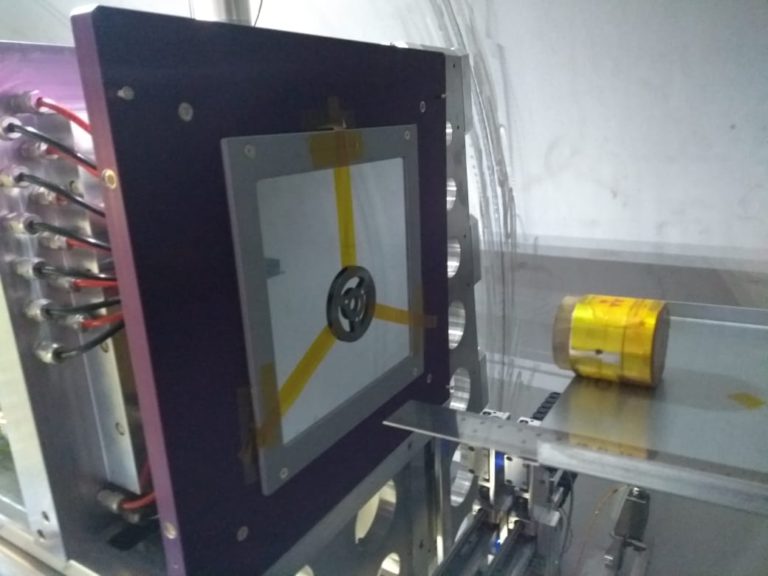

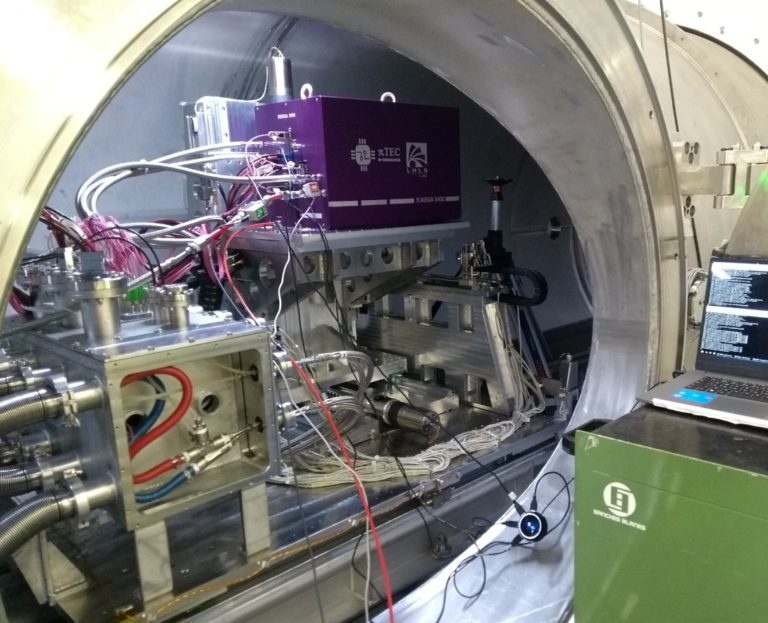

PIMEGA 540D Use case

A Courtesy of the LNLS-Sirius @CNPEM, Brazil
